2010年11月18日
＜ 読売新聞 関連記事 以下抜粋 ＞
電気自動車 を 住宅 ・ 工場 の 電源 に ・・・ 三菱自動車 が 実験
【 読売新聞 ： ２０１０－１１－１８ 】
三菱自動車 は １７日
三菱電機 や 三菱商事 などの 三菱グループ や 東京工業大学 など と 提携 し
電気自動車 （ ＥＶ ） 「 アイ ・ ミーブ 」 を
住宅用 や オフィス ・ 工場 の 蓄電池 と して 活用 する
大規模 な 実証実験 に 乗り出すこと を 明らか に した。
アイ ・ ミーブ を 改造 して 施設 に 電気 を 供給 できる 放電機能 を 加え
太陽光発電 の 発電量 が 落ちた 時 などに 施設 に 電力 を 供給 する。
アイ ・ ミーブ への 充電 は 電力料金 の 安い 夜間 の ほか
昼間 は 太陽光発電 など を 利用 し 電気代 を 安く 抑える 効果 も 期待 される。
実験 は ２０１１年 から 三菱自動車 の 岡崎工場 （ 愛知県 ） で
５ ～ １０台 の アイ ・ ミーブ を 使って 行なう。
実際 の 利用 を 想定 し アイ ・ ミーブ は 通勤 や 買い物 など
普段 の 生活 に 使ってもらい 自宅 や 工場 で 駐車中
工場 や 住宅 の 電力利用量 が 多い 時 は アイ ・ ミーブ から 電力 を 供給 する。
この 記事 の ソース は こちら
Posted at 2010/11/18 18:15:09 | |
トラックバック(0) |
三菱自動車 関連情報 | 日記
2010年11月18日
北米三菱 ( Ｍｉｔｓｕｂｉｓｈｉ Ｍｏｔｏｒｓ Ｎｏｒｔｈ Ａｍｅｒｉｃａ ： ＭＭＮＡ ） は
ロサンゼルスオートショー で 世界初披露 する
北米仕様 ミツビシ ｉ－ＭｉＥＶ を 公開 しました。
＜ 三菱自動車 関連記事 以下抜粋 ＞
三菱自動車
２０１０ ロサンゼルスオートショー で 北米向け の ｉ－ＭｉＥＶ を 初披露
三菱自動車 は
２０１０年 １１月１７日 （ 水 ） ［ 一般公開 は １１月１９日 （ 金 ） ］ から ２８日 （ 日 ） まで
米国 ロサンゼルス の コンベンションセンター
（ Ｌｏｓ Ａｎｇｅｌｅｓ Ｃｏｎｖｅｎｔｉｏｎ Ｃｅｎｔｅｒ ） で 開催 される
ＬＡ ＡＵＴＯ ＳＨＯＷ （ ロサンゼルスオートショー ） で
新世代電気自動車 ｉ－ＭｉＥＶ （ アイ ・ ミーブ ） の 北米仕様 を 世界初披露 する ほか
本年末 から 北米市場 で 本格 販売 する コンパクト ＣＵＶ （ クロスオーバー ）
アウトランダー スポーツ （ 日本名 ＲＶＲ ・ 欧州名 ＡＳＸ ） など
北米市場 での 主力車種 を 出品 する 予定 で ある。
今回 出品 する 予定 の ｉ－ＭｉＥＶ （ 北米仕様 ） は
日本 ・ 欧州向け の ｉ－ＭｉＥＶ と 比べ
大人 ４人 が ゆったり 乗れる 居住空間 を 確保 する ため ボディ を 一新
ひと回り 大きな サイズ と した。
また 前後バンパー を 新作
乗員 の 着座位置 を 検知 して 展開量 を 制御 する エアバッグシステム や
タイヤ空気圧モニター （ Ｔｉｒｅ Ｐｒｅｓｓｕｒｅ Ｍｏｎｉｔｏｒｉｎｇ Ｓｙｓｔｅｍ ： ＴＰＭＳ )
アクティブ スタビリティ コントロール （ Ａｃｔｉｖｅ Ｓｔａｂｉｌｉｔｙ Ｃｏｎｔｒｏｌ ： ＡＳＣ ） を
標準装備 する。
＜ ｉ－ＭｉＥＶ （ 北米仕様 ） 主要スペック ： 【 】 内 は 日本仕様 との 差 ＞
・ 全 長 ： ３，６８０ｍｍ 【 ＋ ２８５ｍｍ 】
・ 全 幅 ： １，５８５ｍｍ 【 ＋ １１０ｍｍ 】
・ 全 高 ： １，６１５ｍｍ 【 ＋ ５ｍｍ 】
・ トレッド （ 前 後 ） ： １，４２０ｍｍ ／ １，３８０ｍｍ 【 ＋ １１０ｍｍ ／ ＋ １１０ｍｍ 】
※ Ｐｈｏｔｏ ｂｙ 北米三菱 ( Ｍｉｔｓｕｂｉｓｈｉ Ｍｏｔｏｒｓ Ｎｏｒｔｈ Ａｍｅｒｉｃａ ： ＭＭＮＡ ）
【 Ｍｉｔｓｕｂｉｓｈｉ Ｍｏｔｏｒｓ Ｎｏｒｔｈ Ａｍｅｒｉｃａ （ ＭＭＮＡ ） ： Ｐｒｅｓｓ Ｒｅｌｅａｓｅ 】

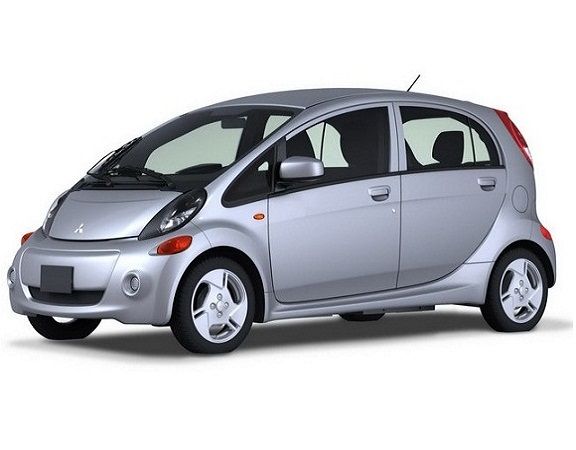

Mitsubishi Unveils
North American Version Of New "i" Electric Vehicle
At The 2010 Los Angeles Auto Show
Wed, Nov 17, 2010 - Los Angeles -
Building on the company's more than 35 years of involvement in advanced electric vehicle development, Mitsubishi Motors has unveiled its first all-electric production vehicle bound for the North American market.
Based on the very popular gasoline-powered "i" minicar in the Japanese market, this roomy and practical four-door 2012 model serves as the basis for the new 100% battery-powered Mitsubishi "i" for the North American market. The zero tailpipe emission "i" will be the first North American production vehicle to be powered by Mitsubishi innovative Electric Vehicle (MiEV) technology – cutting edge drivetrain engineering that will serve as the basis for future ultra-environmentally-friendly vehicles from the company. Gone are conventional automotive systems including a gasoline engine, transmission and a fuel tank, having been replaced by advanced components including a lithium-ion battery system, electric motor and an efficient battery charging system in the all-new "i". This electric vehicle has already proved itself a viable and reliable form of transportation as Mitsubishi has been selling the car in its home market since the summer of 2009; production has already commenced for the European-spec i-MiEV, with deliveries beginning later this year.
Mitsubishi anticipates an initial roll out of the "i" to its dealership network in the western United States (specifically California, Oregon, Washington and Hawaii) in November 2011, with entry into the northeastern market to follow by March 2012 and nationwide availability by the end of 2012. The vehicle's MSRP is expected to be around $30,000, not including Federal and available state financial incentives.
The new production Mitsubishi "i" bound for the North American market further differentiates itself from its Japanese- and European-spec versions with a retooled, larger body to provide even more interior comfort for four adults, along with new North American-spec bumpers front and rear for enhanced protection in the event of a collision. Other noteworthy safety measures on the North American-spec vehicle include airbags that protect passengers and control deployment force, Active Stability Control (ASC) and a Tire Pressure Monitoring System (TPMS) - all included as standard equipment.
Easier on the Environment
Thanks to its extremely efficient all-electric powertrain, the Mitsubishi "i" produces zero on-road CO2, making it a zero emissions vehicle. What's more, when factoring in the CO2 emissions produced by the power plants that generated the electricity that provides the energy for the "i", this revolutionary Mitsubishi production car only produces about 30% of the CO2 emitted by the 660cc gasoline engine that powers the non-electric-version of the car in its home market. And the reduction in CO2 becomes even more statistically significant considering that the 660cc gasoline engine found in the Japanese market is only about one-third of the displacement of the typical four-cylinder gasoline engine powering cars in the North American market.
Additional energy efficiency can be wrung from the "i" model's electric powertrain thanks to Eco (Economy) and Brake driving modes that supplement the vehicle's standard Drive mode. The Eco mode limits excessive power usage from reaching the motor while the Brake mode increases the resistance of the regenerative braking system (especially when driving downhill) to feed even more energy back into the car's bank of lithium-ion batteries.
Low Cost "Fuel" Source
The operating cost per mile of the electrical-powered Mitsubishi "i" is significantly cheaper than that of a comparable gasoline-powered vehicle. In Japan, the operating cost is only 1/3 that of the 660cc gasoline engine-powered version of the car, and the operating cost can drop even more significantly than that of its internal-combustion sibling by taking advantage of reduced electricity rates by recharging during nighttime or off-peak hours*.
Clever Design = Spacious Accommodations, Outstanding Safety
Thanks to the vehicle's excellent packaging and engineering in relation to its size, this uniquely styled automobile provides an excellent level of safety, ample room for four adults plus handy cargo space.
How can a small car possess such ample interior volume? Mitsubishi engineers have cleverly placed the high-capacity lithium-ion batteries beneath the floor, and the electric motor, inverter and battery charger have been located behind and below the rear passenger area. This setup also has the added benefit of lowering the vehicle's center of gravity. Along with the wheels being placed at the farthest corners of the vehicle, this gives the "i" exceptional stability along with surprisingly agile handling.
Advanced Electric Powertrain
The power system consists of a permanent magnet synchronous electric motor and a high energy density lithium-ion battery pack that consists of 88 cells (22 modules, 4 battery cells per module) for a maximum battery capacity of 16 kWh. The battery modules can be installed either transversely or vertically; this packaging flexibility allows them to be stored underneath the cabin floor. All 88 cells reside within an extremely sturdy stainless steel capsule to provide maximum protection.

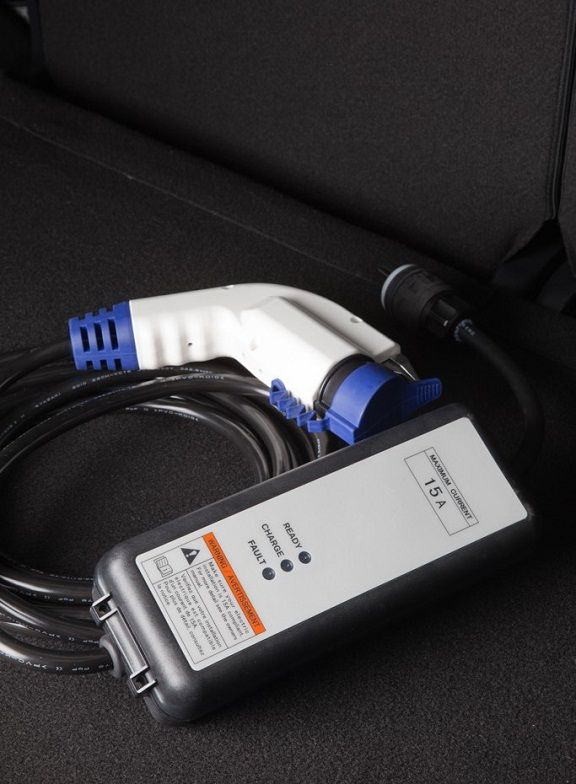

The "i" also features a groundbreaking three-way battery charging system that allows the vehicle to be charged using the onboard household charger through either 110V (15A) or 220V (15A) power sources or by a quick-charger system that utilizes a three-phase 220V power supply. The charging times from a very low battery to completely full are approximately 8 hours at 220V and 16 hours at 110V. The three-phase 220V quick-charger can take a low battery all the way up to an 80% battery charge in under a remarkably fast 30 minutes. The three-phase quick-charger makes use of a special outlet that is accessible on the driver's side of the vehicle, while the onboard household charger's outlet is located on the passenger side of the "i".
Strategic Research and Logistical Partners
The Mitsubishi "i" has undergone several years of exhaust testing and evaluation not only internally by the Japanese auto manufacturer but with several other institutions, including seven utility companies in Japan, as well as prototype evaluation programs with major United States utilities Southern California Edison, Pacific Gas and Electric Company (PG&E), Portland General Electric and the Tennessee Valley Authority.
And in an effort to help expand and improve the logistical side of the electric vehicle ownership experience, Mitsubishi has teamed with corporate titans including consumer electronics retailer Best Buy and leading power management company Eaton Corporation. Best Buy, through its 20,000-plus strong employees in its Geek Squad division, has partnered to provide site analysis and work to manage installation of a Level 2 Charging Station it will sell through its stores for Mitsubishi "i" owners to use in their own homes. Designed and manufactured by Eaton - a company that has more than 20 years of experience in developing electrical and hybrid power systems for commercial vehicles - this 220V charging station will cut the time it takes to charge the car's batteries in half when compared to a standard 110V electrical outlet.
*Note: Electricity rates can vary by region, supplier and timing.
Mitsubishi "i" specifications (North American Version)
・ Overall length 144.8-in.
・ Overall width 62.4-in.
・ Overall height 63.6-in.
・ Track: F/R 55.9 / 54.3-in.
・ Wheelbase 100.4-in.
・ Number of passengers 4
・ Vehicle weight 2584 lbs.
・ Motor output 63 hp
・ Motor torque 133 lb.-ft
・ Battery system 330V lithium-ion
・ Drive mode Mid-engine, rear-wheel drive
関連記事 は こちら と こちら
欧州仕様 ミツビシ ｉ－ＭｉＥＶ の 詳細 は こちら と こちら
本家 日本仕様 ミツビシ ｉ－ＭｉＥＶ の 詳細 は こちら
